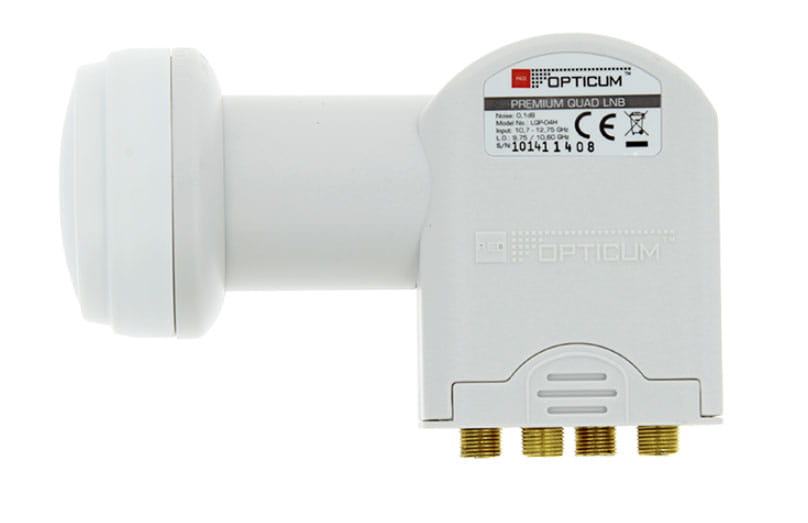

OPTICUM QUAD LQP-04H

The quad type satellite converter has four full-range converters connected in one housing.

Thanks to this, we have four independent outputs that can be used in various configurations, eg:

- four independent tuners with one receiving head
- two tuners with one head and one with a double one, eg PVR type
- two tuners with a double PVR head

The Quad Opticum LQP-04H converter is a premium class device with a very low noise ratio of 0.1 dB. It can handle the reception of HD signal without any problems. The converter is attached to a satellite dish in a standard 40 mm holder.

Technical data:

- Boosting / Profit 58dB
- Noise factor 0.1dB
- 130 mA power consumption
- Weight 282g
- Diameter of fixing 40mm
- Input frequency range 10.7 - 12.75 GHz
- Output frequency range 950 - 2150 MHz

Quantity in the box: 50

EAN CODE: 5901912282094
