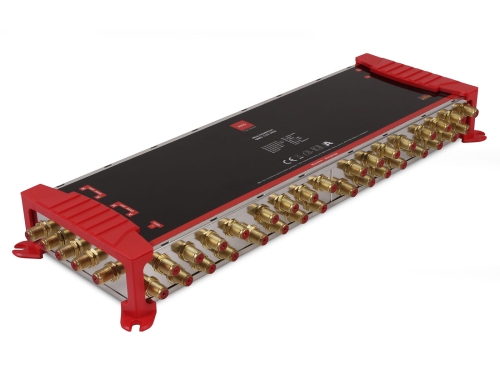

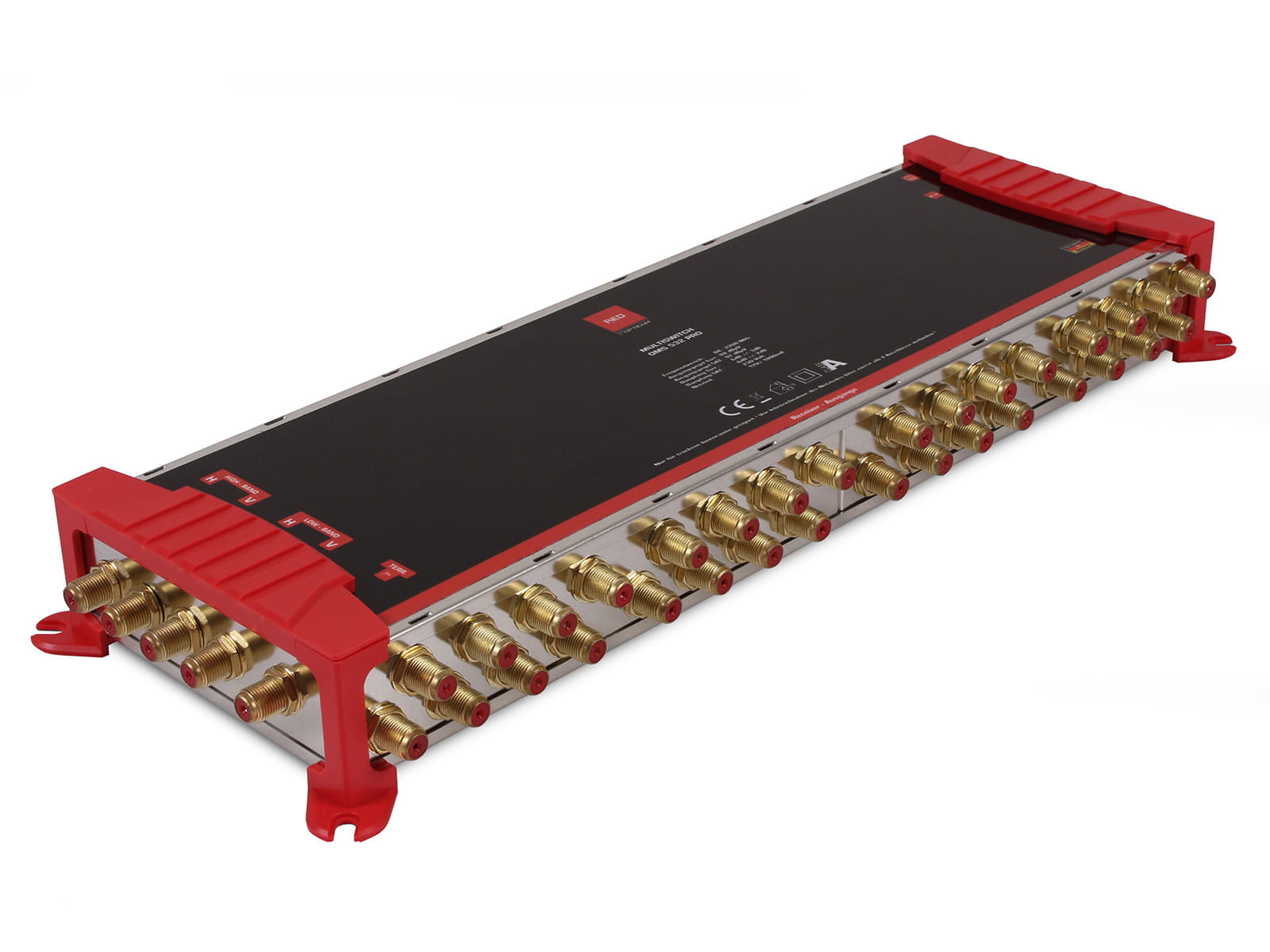

OPTICUM OMS PRO 5/32

Availability: on sale
quantity szt.

product unavailable

add to wish list
Pin It

Description

The multiswitch is designed to expand the internal antenna installation of satellite and terrestrial Full HD and SD systems.

The device allows you to receive programs from one satellite and connect up to 32 satellite receivers.

Gold-plated sockets significantly reduce signal losses at the antenna cable connection, and no oxidation.

The multiswitch automatically recognizes the type of signal that will be transmitted to the tuners.

The installation should include the connection of a multiswitch to a satellite dish with a diameter of not less than 0.8 m and a Quatro converter, and a terrestrial TV antenna.

Separation of the Sat and TV signal coming from the multiswitch takes place via the end subscriber sockets. Quatro converters and subscriber sockets are available in our store.

The multiswitch is powered via an external power supply, which eliminates the phenomenon of increased operating temperature which is a frequent cause of damage to the device.

When installing the device, the existing installation conditions regarding power supply must be taken into account: locations away from the influence of atmospheric conditions, protection against unauthorized access by adequate ventilation.



Technical data:

- Frequency range: 88 - 2200 MHz

- SAT gain: 6 dB

- TER gain (47-862 MHz): 6 dB

- Maximum SAT output level: 92 dBuV

- Maximum TER output level: 88 dBuV

- I / O Impedance: 75 Ohm

- Polarity switching / band: 13V / 18V 13V / 22kHz-18V / 22kHz

- Power supply from the power supply network: 230V AC 50Hz /

- External power supply: 12V / 1000 mA

- Working temperature: 0 ... + 55 oC

- Dimensions: 390 x 140 x 45 mm
