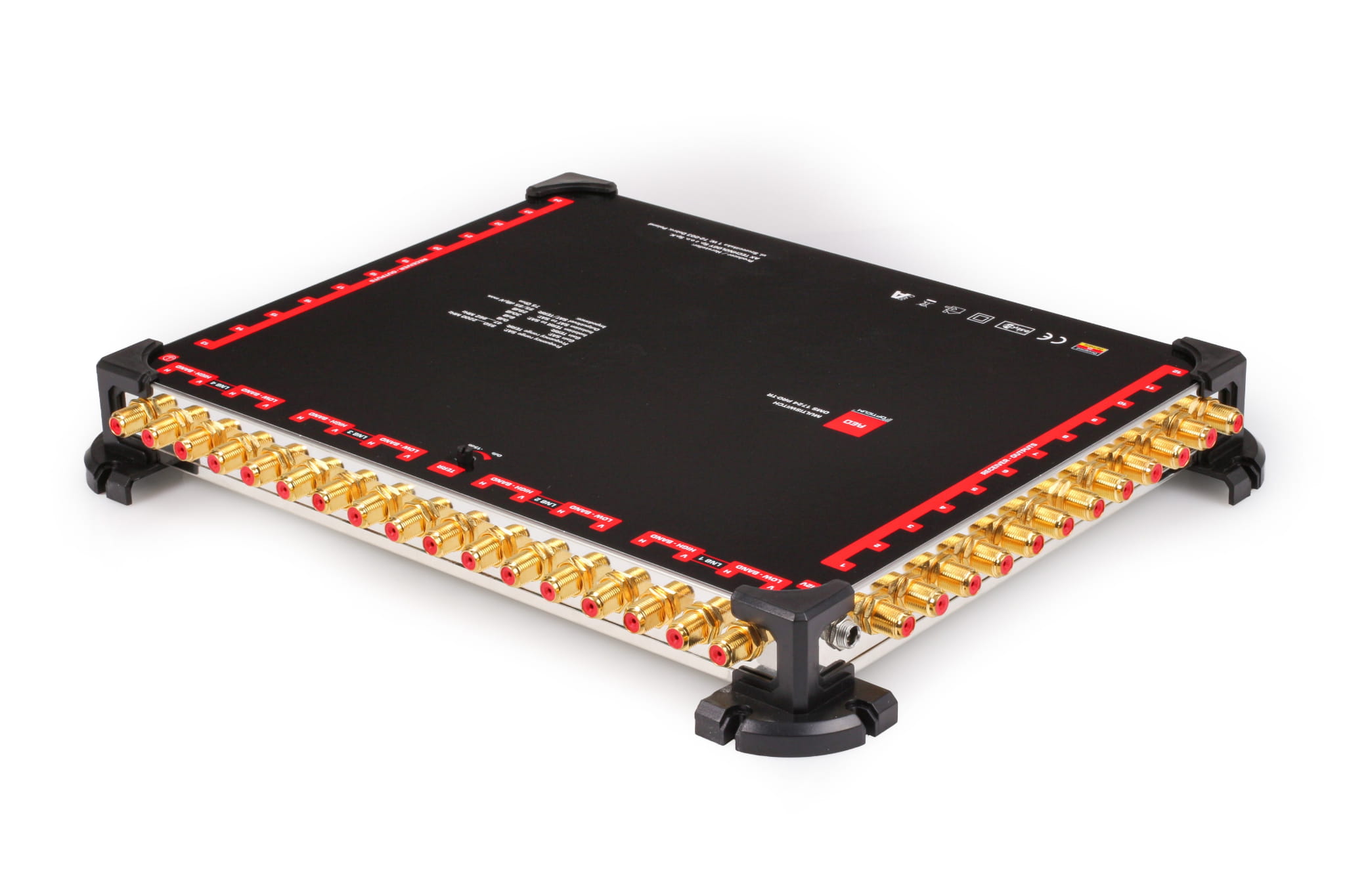

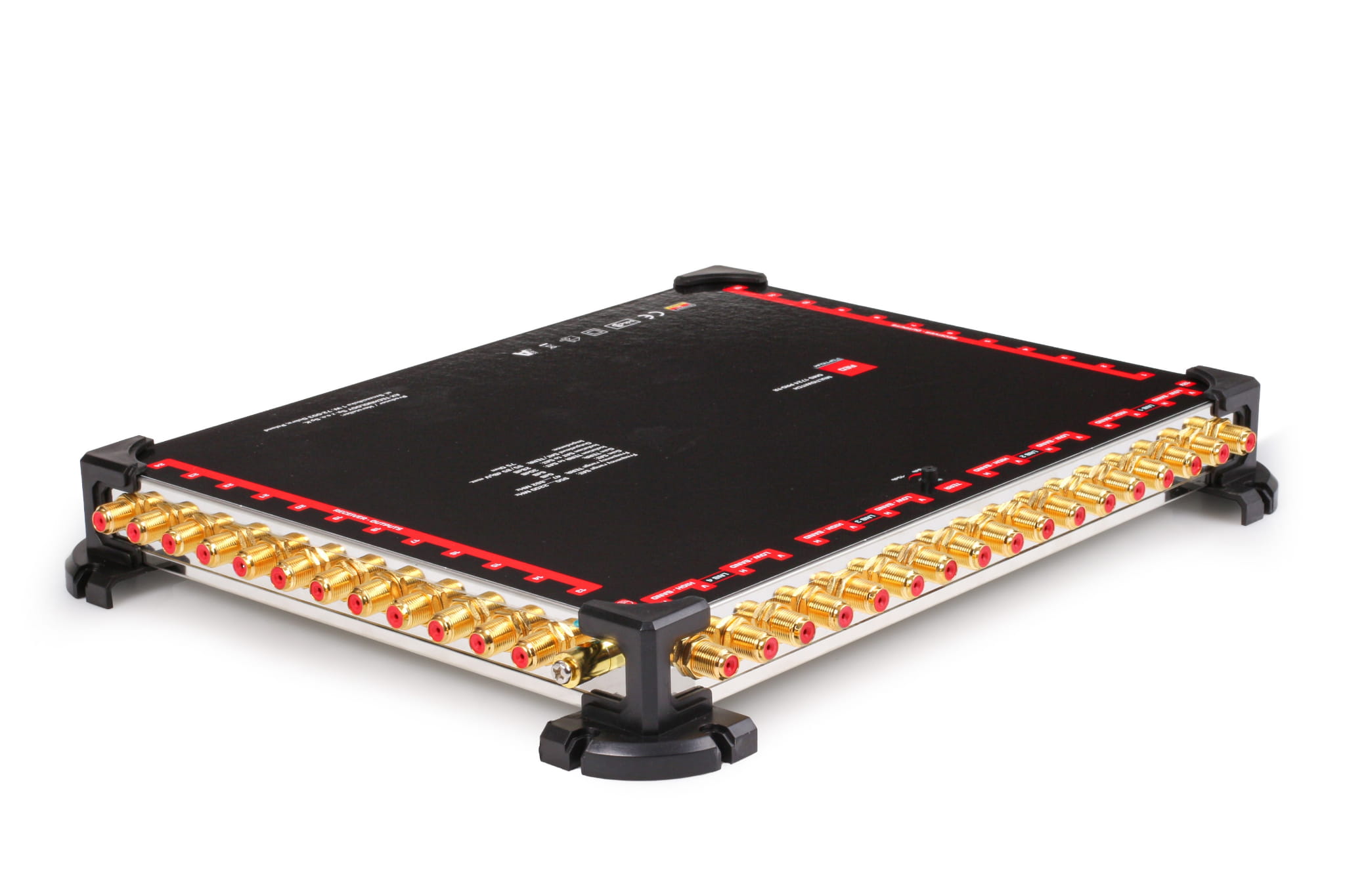

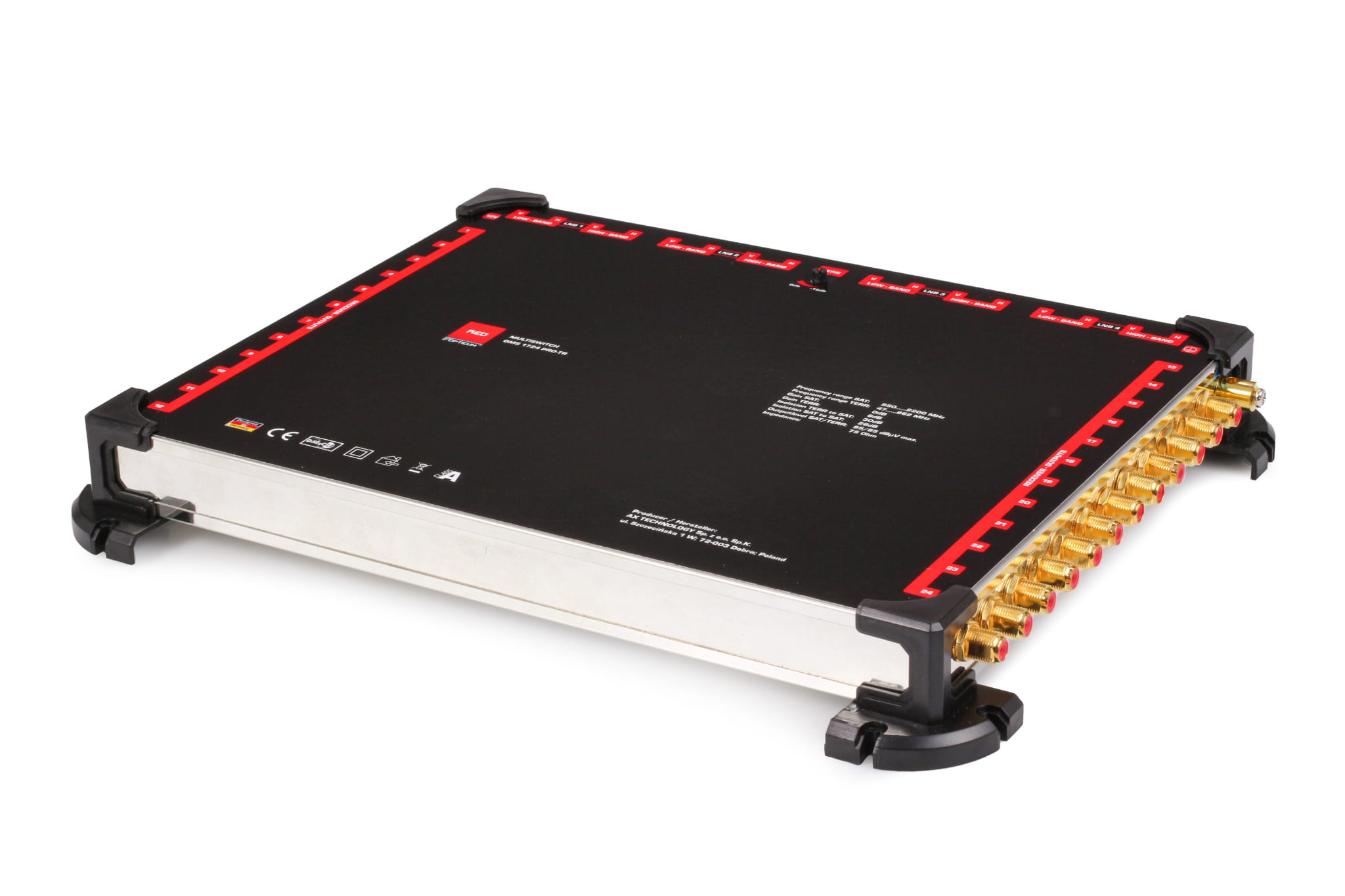

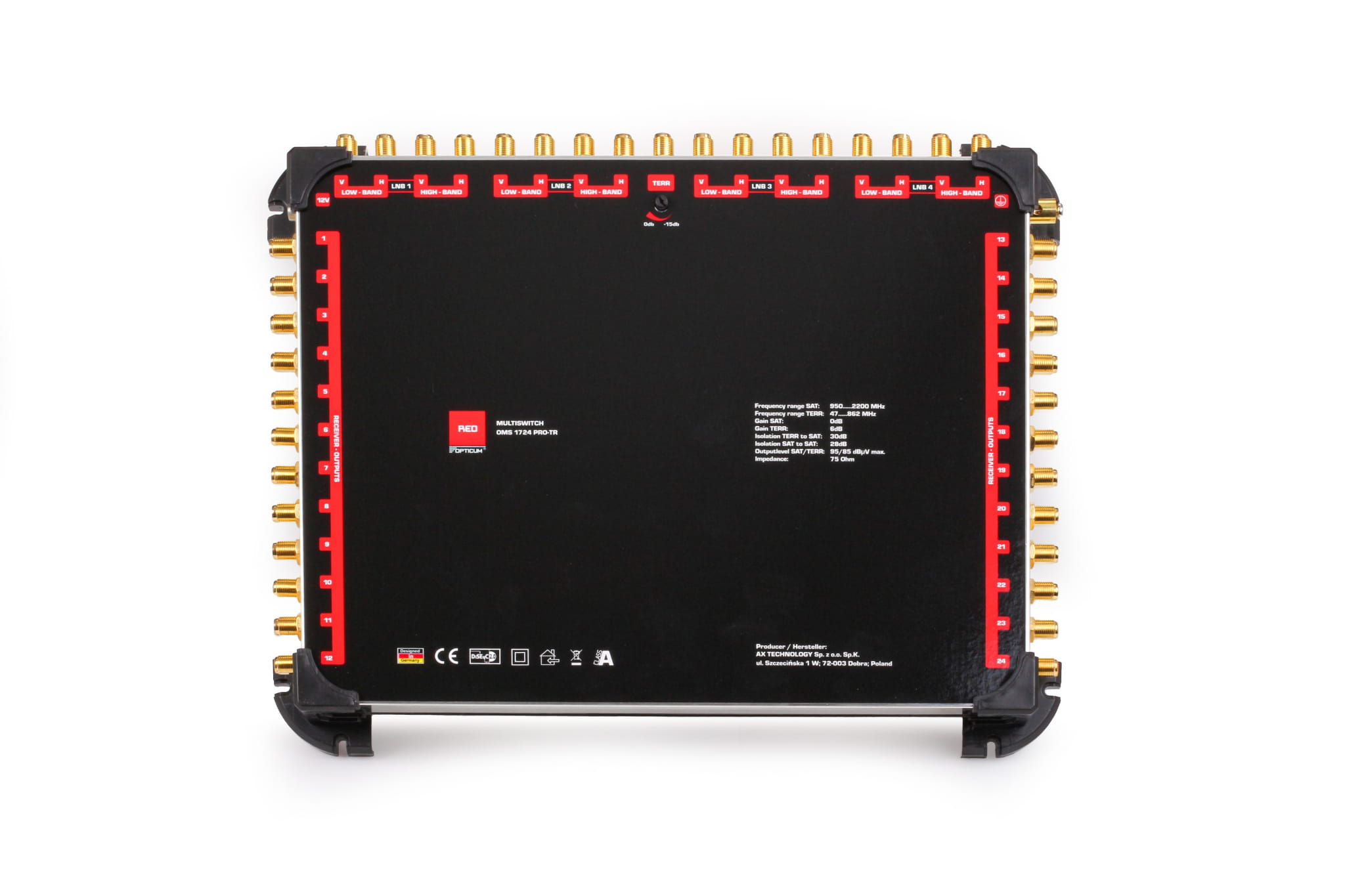

Multiswitch Opticum OMS 17/24 PRO-TR

The multiswitch is designed to extend the indoor antenna installation of the television system

satellite DVB-S2 from any four satellites
terrestrial DVB-T2
connection of up to 24 satellite receivers

Terrestrial TV signal attenuation adjustment

Gold-plated sockets significantly reduce signal losses at the antenna cable connection and no oxidation phenomena.

The multiswitch automatically recognizes the type of signal that will be transmitted to the tuners. The installation should include the connection of the multiswitch to a satellite dish with a diameter not smaller than 1.0 m and Quattro converters, and a terrestrial TV antenna.

Separation of the satellite and terrestrial signals coming from the multiswitch is done using sockets end subscribers. Quattro converters and subscriber outlets are available in our store. The multiswitch is powered via an external power supply, thanks to which it is eliminated the phenomenon of increased operating temperature, which is a frequent cause of device damage.

When installing the device, the existing installation conditions for the power supply must be taken into account:

location away from the influence of weather conditions
protection against unauthorized access
adequate ventilation

Connection:

one, two, three or four Quattro converters
DVB-T terrestrial antenna
24 sat tuners

Technical data:

SAT frequency range: 950-2200 MHz
TER frequency range: 47-862 MHz
SAT gain (950-2150 MHz): 0 dB
TER gain (47-862 MHz): 6 dB
SAT to TER separation: 30 dB
TER to SAT separation: 28 dB
Separation between H / V polarities: 25 dB
Maximum SAT output level: 95 dBuV
Maximum TER output level: 85 dBuV
Input / output impedance: 75 Ohm
Polarity / band switching: 13V / 18V 13V / 22kHz-18V / 22kHz
Mains power: 230V AC 50Hz
Working temperature: 0 ... + 55 oC
Dimensions: 326 x 264 x 42 mm (real dimensions)

Set contains:

Multiswitch

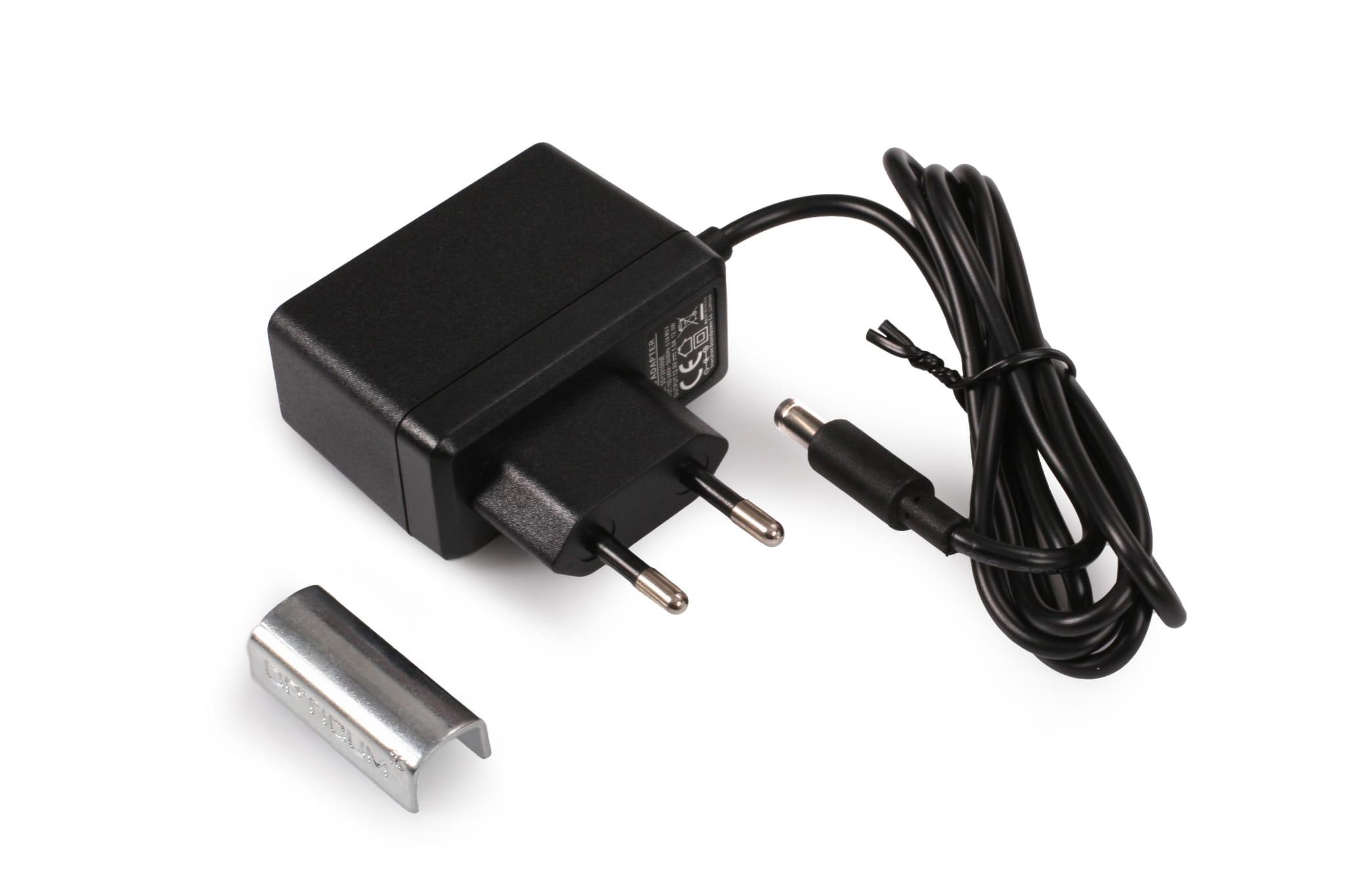

Power supply Wrench for screwing in the F connector
AC adapter
Original packaging
