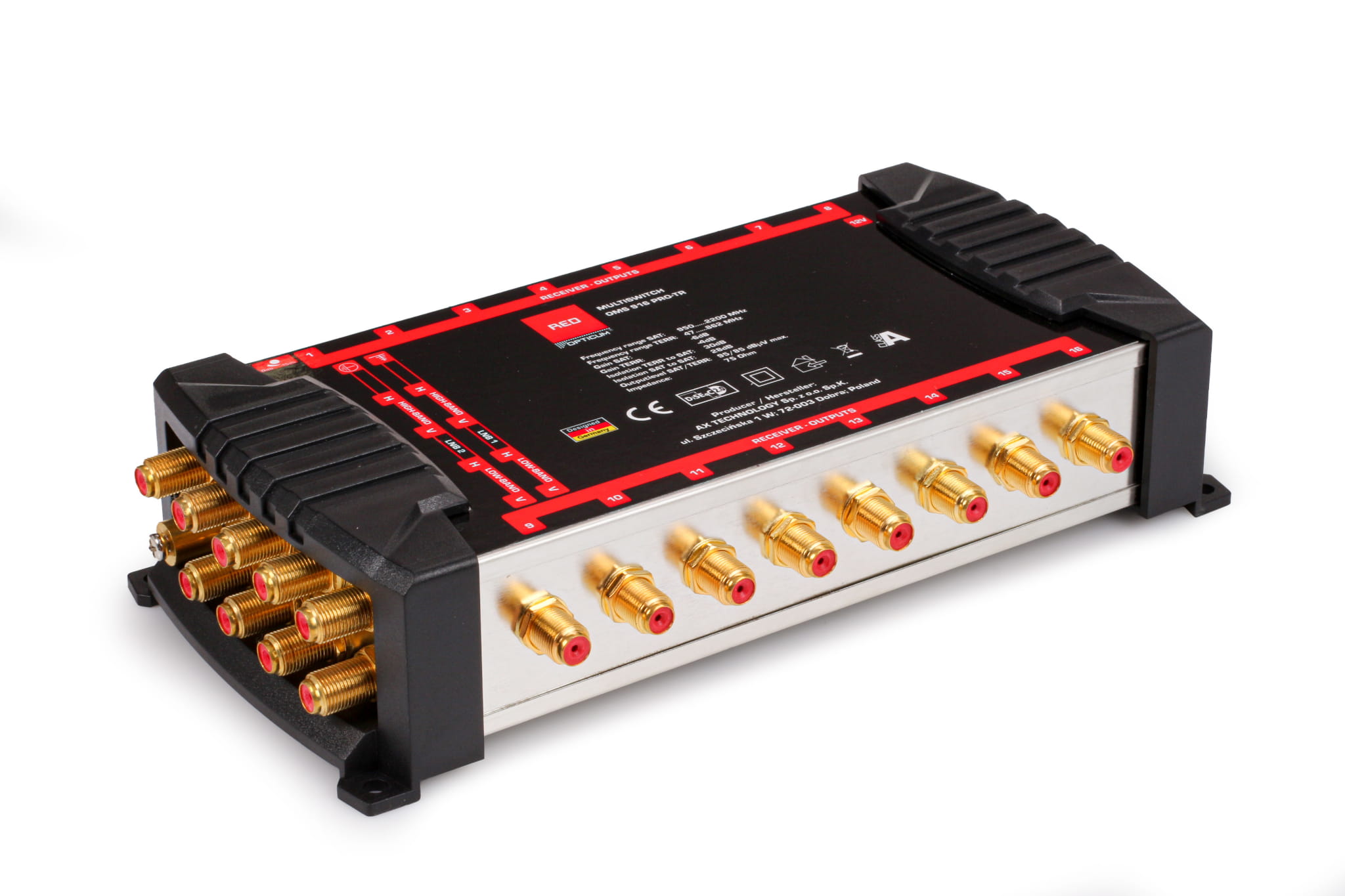

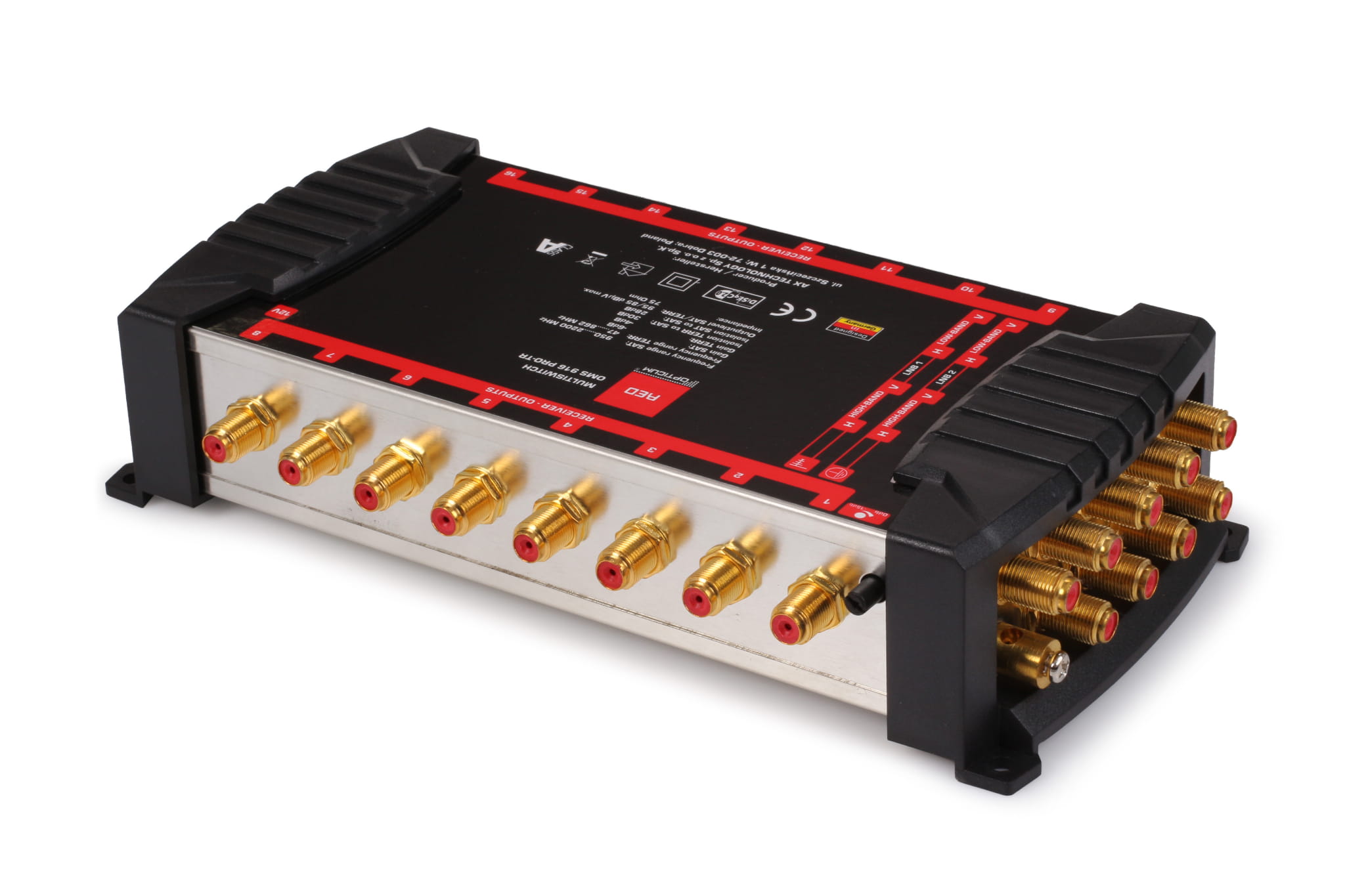

MULTISWITCH OPTICUM OMS TR 9/16 PLATINIUM LINE

The multiswitch is designed to expand the indoor antenna installation of the television system

• satellite DVB-S2 from any two satellites such as Hotbird and Astra
• terrestrial DVB-T2.

The device allows you to receive programs from two satellites and connect up to 16 satellite receivers.

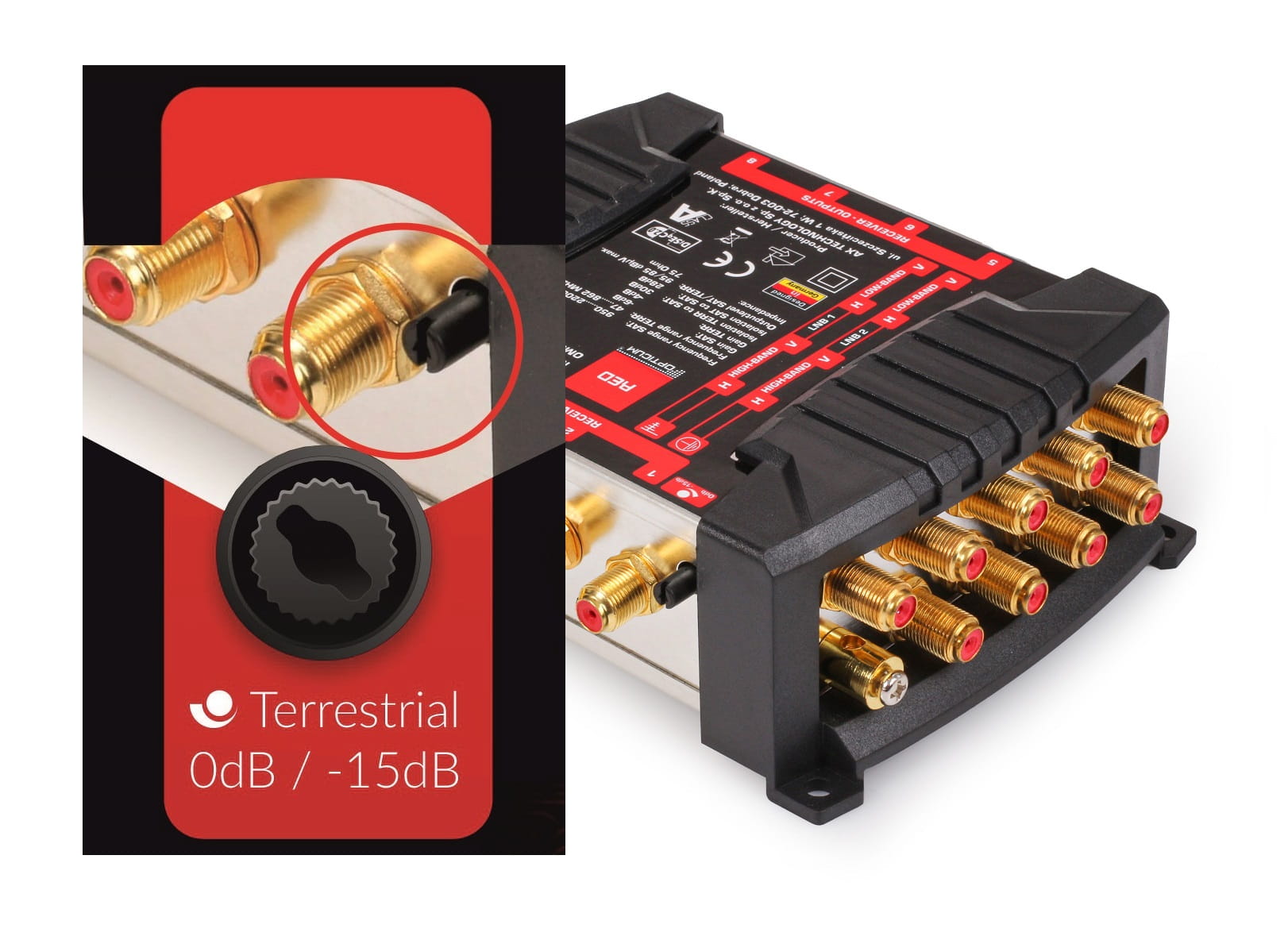

Terrestrial TV signal attenuation adjustment

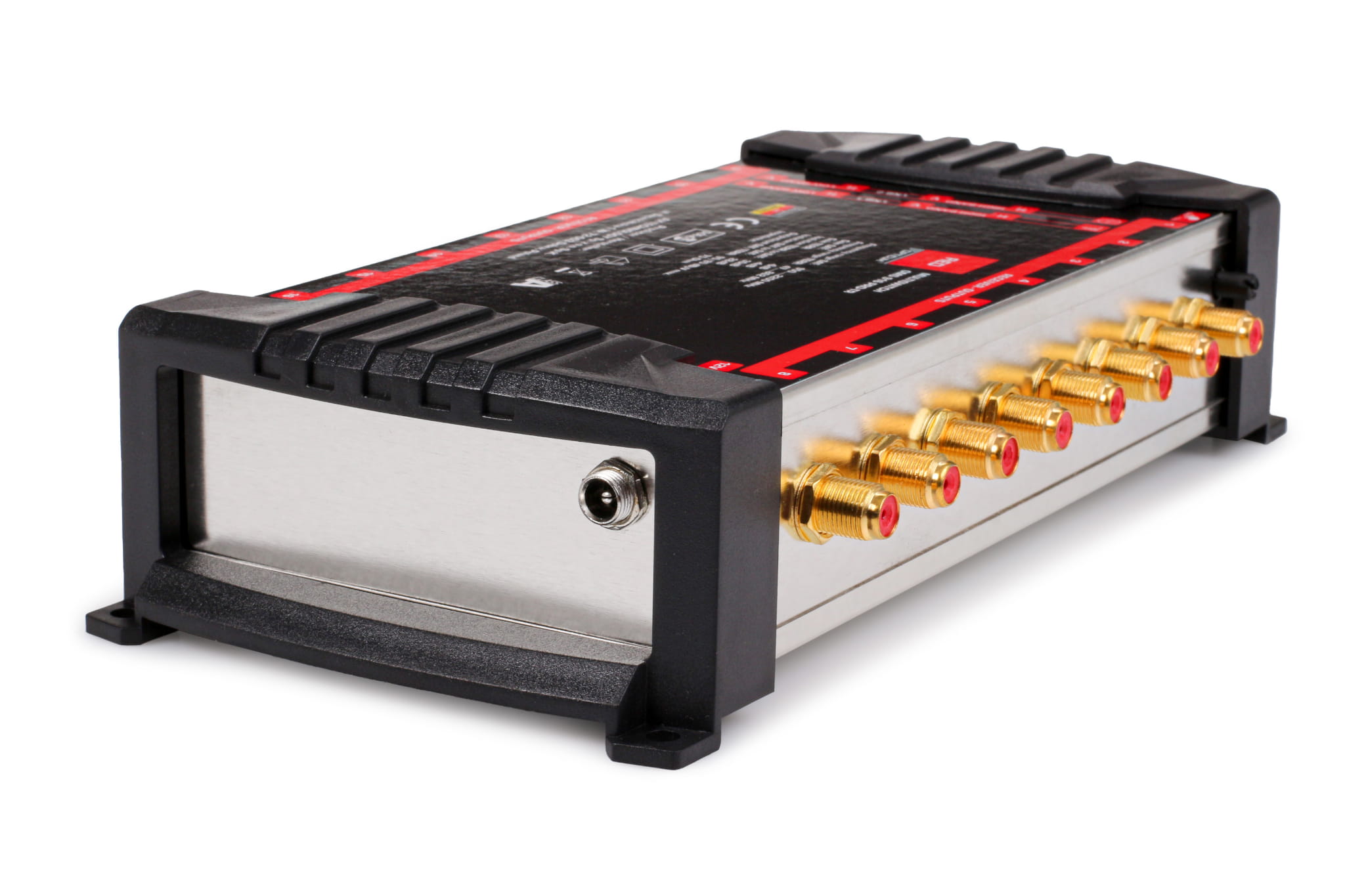

Gold-plated sockets significantly reduce signal losses at the antenna cable connection, and no oxidation phenomena. The multiswitch automatically recognizes the type of signal it will be passed to tuners.

The installation should include the connection of the multiswitch to a satellite dish with a diameter not smaller than 0.8 m and a Quattro or Quad LNB and a terrestrial TV antenna.

Separation of the satellite and terrestrial signals coming from the multiswitch is done using sockets end subscribers. Quattro, Quad converters and subscriber outlets are available in our store. The multiswitch is powered via an external power supply, so it is eliminated the phenomenon of increased operating temperature, which is a frequent cause of damage to the device.

When installing the device, the existing installation conditions for power supply must be taken into account:

location away from the influence of weather conditions
protection against unauthorized access
adequate ventilation

Connection:

one Quattro or QUAD LNB
one DVB-T terrestrial antenna
16 sat tuners

Technical data:

SAT frequency range: 950-2200 MHz
TER frequency range: 47-862 MHz
SAT gain (950-2150 MHz): -6 dB
TER gain (47-862 MHz): -4 dB
SAT to TER separation: 30 dB
TER to SAT separation: 28 dB
H / V polarization separation: 25 dB
Maximum SAT output level: 95 dBuV
Maximum TER output level: 85 dBuV
Input / output impedance: 75 Ohm
Polarity / band switching: 13V / 18V 13V / 22kHz-18V / 22kHz
Mains power: 230V AC 50Hz
Working temperature: 0 ... + 55 oC
Dimensions: 235 x 130 x 52 mm (real dimensions)

Set contains:

Multiswitch

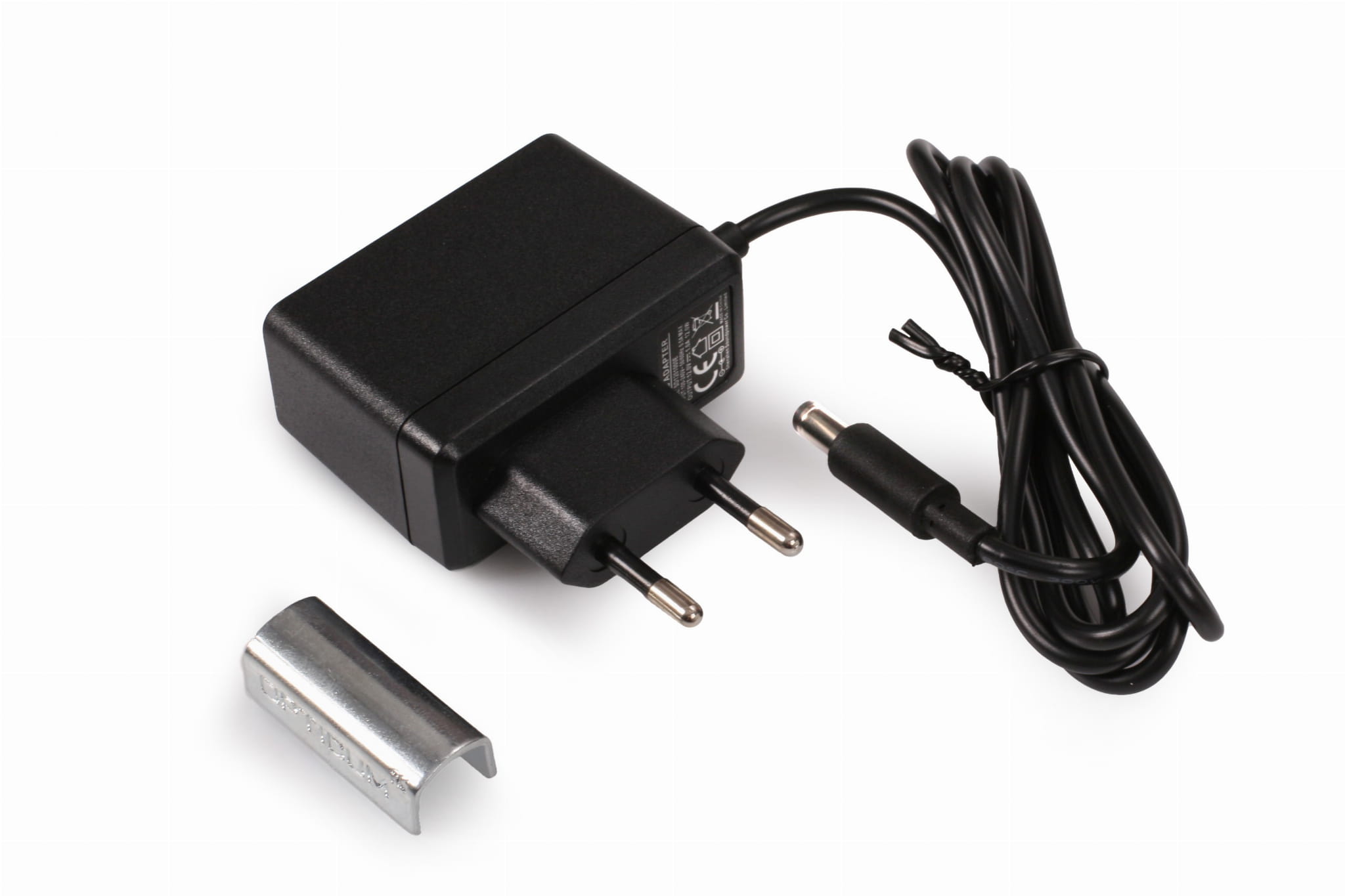

Power supply Wrench for screwing in the F connector
AC adapter
Original packaging
